(2) JBL Control SB2210 Dual 10" Indoor/Outdoor Subwoofers+Amplifier 4 Restaurant

Package Includes:

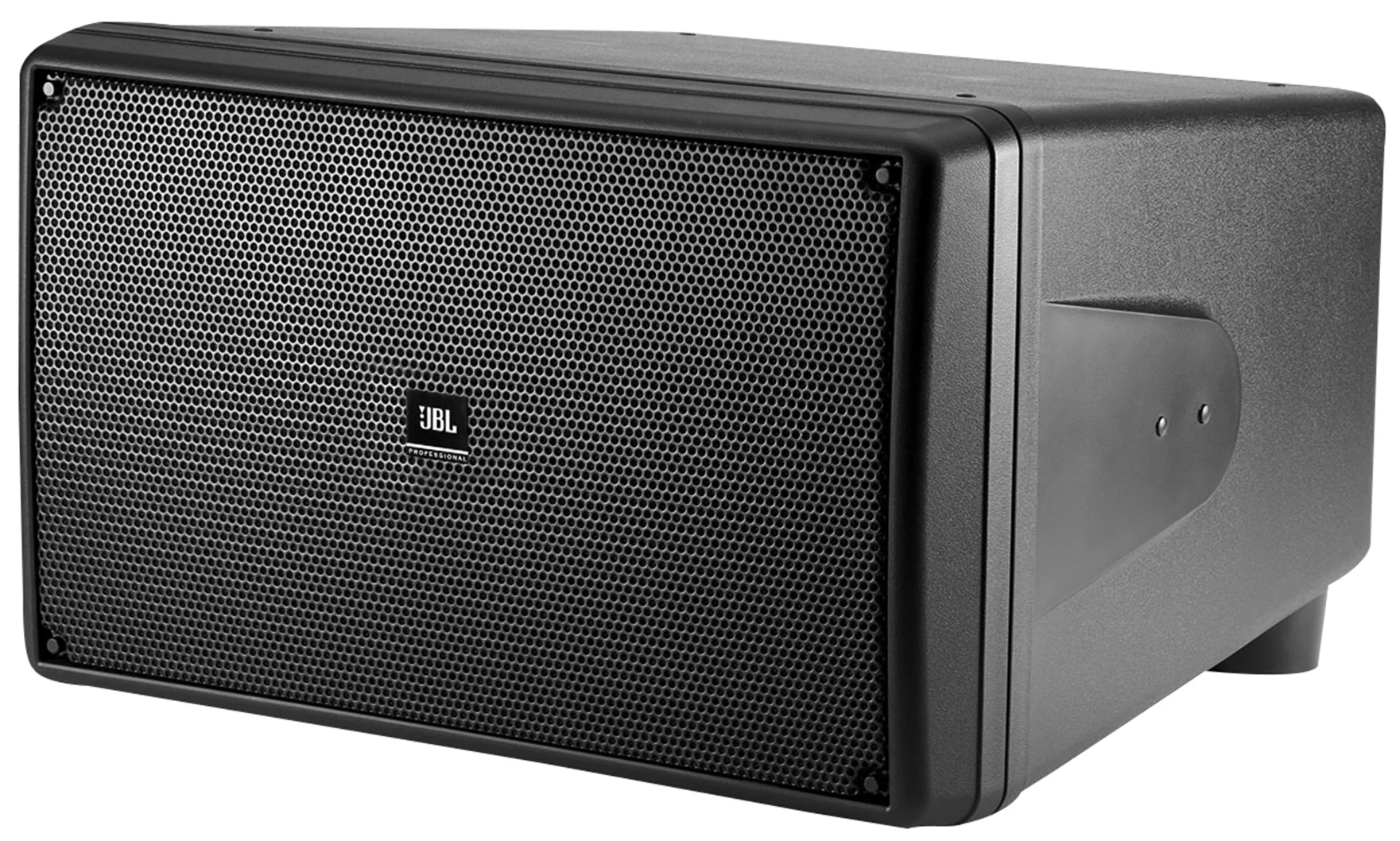

• (2) JBL Control SB2210 Dual 10" Indoor/Outdoor Subwoofer 4 Restaurant/Bar/Cafe/Patio

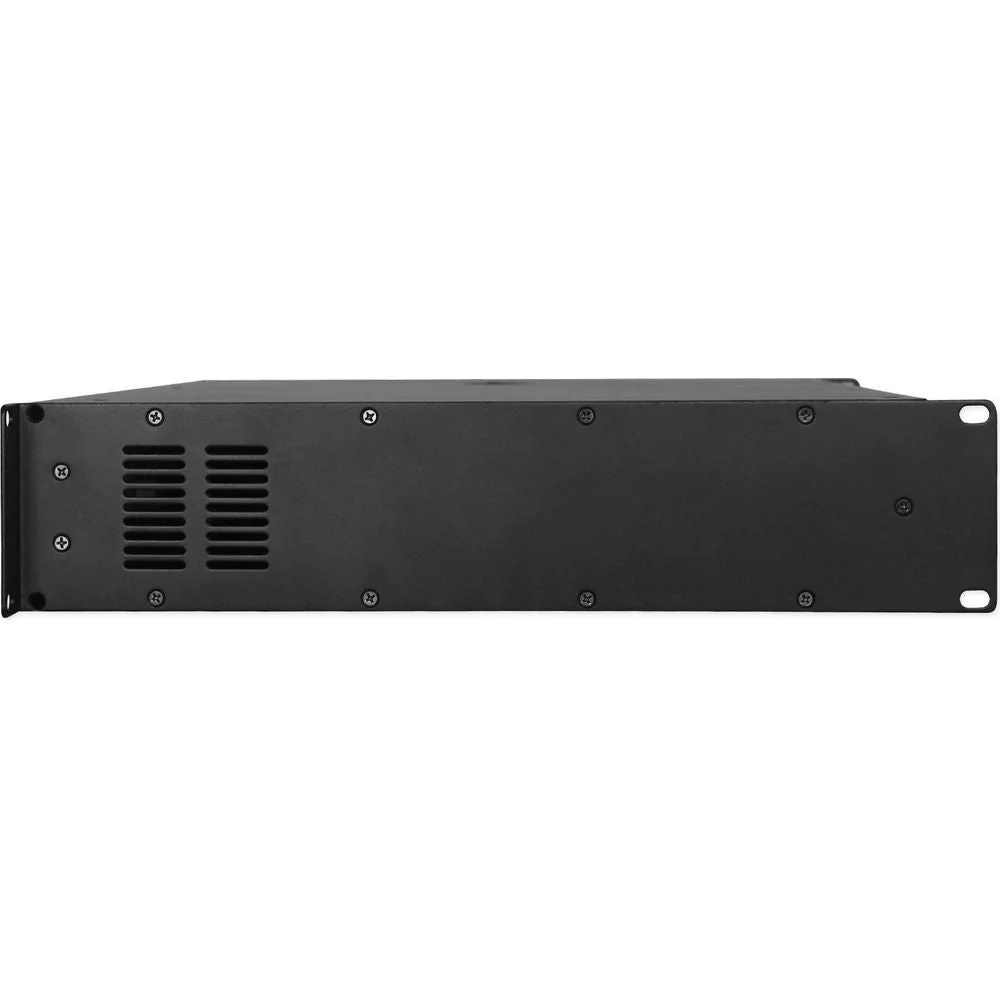

• (1) Rockville RPA14 7000 Watt Peak / 2000w RMS 2 Channel Power Amplifier Pro/DJ Amp

---

Description:

The Control SB2210 provides low frequency reinforcement for a wide variety of sound system applications. Its compact size, high output and outdoor capable design makes it one of the most versatile subwoofers in the installation market.

Features:

• 2 x 250 mm (10 in.) Woven Fiberglass Cone LF Drivers

• 500 Watts Power handling

• Frequency Response Down to 38 Hz

• 13 x M6 Insert Points Including Inserts for Optional U-Bracket

• Compact, Low Profile Design

Specifications:

• Frequency Range (-10 dB): 38 Hz - 500 Hz

• Frequency Response (-3 dB): 48 Hz - 95 Hz

• Power Rating: 500W (2000W peak) Continuous Pink Noise (2 hrs) 1000W Continuous Program(2 hrs) 400W (1600W peak) Continuous Pink Noise (100 hrs)

• Maximum Input Voltage: 60.0VRMS (2 hrs), 120V peak

• Sensitivity: 95 dB, 1W @ 1m in half-space (2p loading, average 50 – 90 Hz)

• Max SPL: 122 dB in half-space (2p loading)

• Nominal Impedance: 8O

• Minimum Impedance: 7.2O at 160 Hz

• Recommended Filter: 45 Hz, 24 dB/oct high-pass filter

• Low Frequency: Two 250 mm (10 inch) diameter LF drivers, long-excursion design, woven fiberglass cone, highly damped butyl rubber surround, linear suspension spider, high temperature anodized aluminum voice coil former, high-temp voice coil wire and coil adhesive, FEA optimized motor construction, aluminum conductive ring.

• Enclosure Material: High Impact PolyStyrene (HIPS) w/ 10% glass fill and internal 8 mm polyurethane co-mold, painted with highly-UV-resistant paint on white (-WH) model for maximum UV fade resistance.

• Grille: Thermoset composite coated steel, zinc-plated, 3-layer foam backing.

• Environmental: IP-45 rating per IEC529 when installed with included MTC-PC2 terminal panel cover. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray.

• Terminals: Screw-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5mm2)
• Included MTC-PC2 and optional MTC-PC3 protective covers available to provide sealed entrance for additional weather protection.

• Agency Rating: ROHS-compliant. Optional MTC-SBT300 transformer is UL recognized per UL1876.

• Color: Black

• Dimensions: (H x W x D) 355 x 590 x 570 mm (14 x 23.3 x 22.5 in.)

• Net Weight: 23.31 kg (51.4 lb)

• Shipping Weight: 25.85 kg (57.0 lb)

• Included Accessories: 1 x MTC-PC2 input panel cover, 4 x floor standing feet 4 x beveled washers.

• Transformer Taps: 70V: 300W, 150W, 75W, 38W
• Transformer Taps: 100V: 300W, 150W, 75W

---

How to Set Up Your RPA12, RPA14, and RPA16:

Video of RPA14:

Power Ratings:

• RMS Power Output:
• Stereo 8 Ohm: 2 x 700W
• Stereo 4 Ohm: 2 x 1000W
• Bridged 8 Ohm: 1 x 2000W
• Peak Power Output:
• Stereo 4 Ohm: 2 x 3500W Max
• Bridged 8 Ohm: 1 x 7000W Max

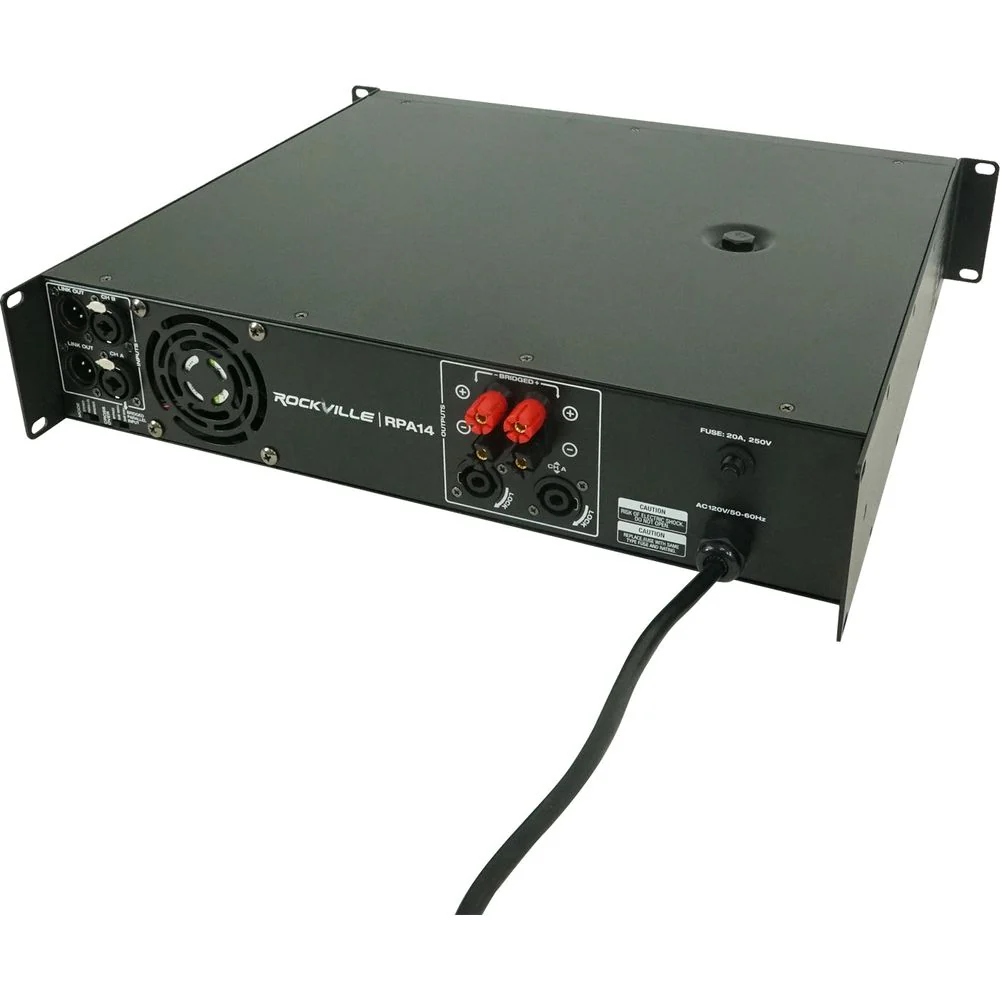

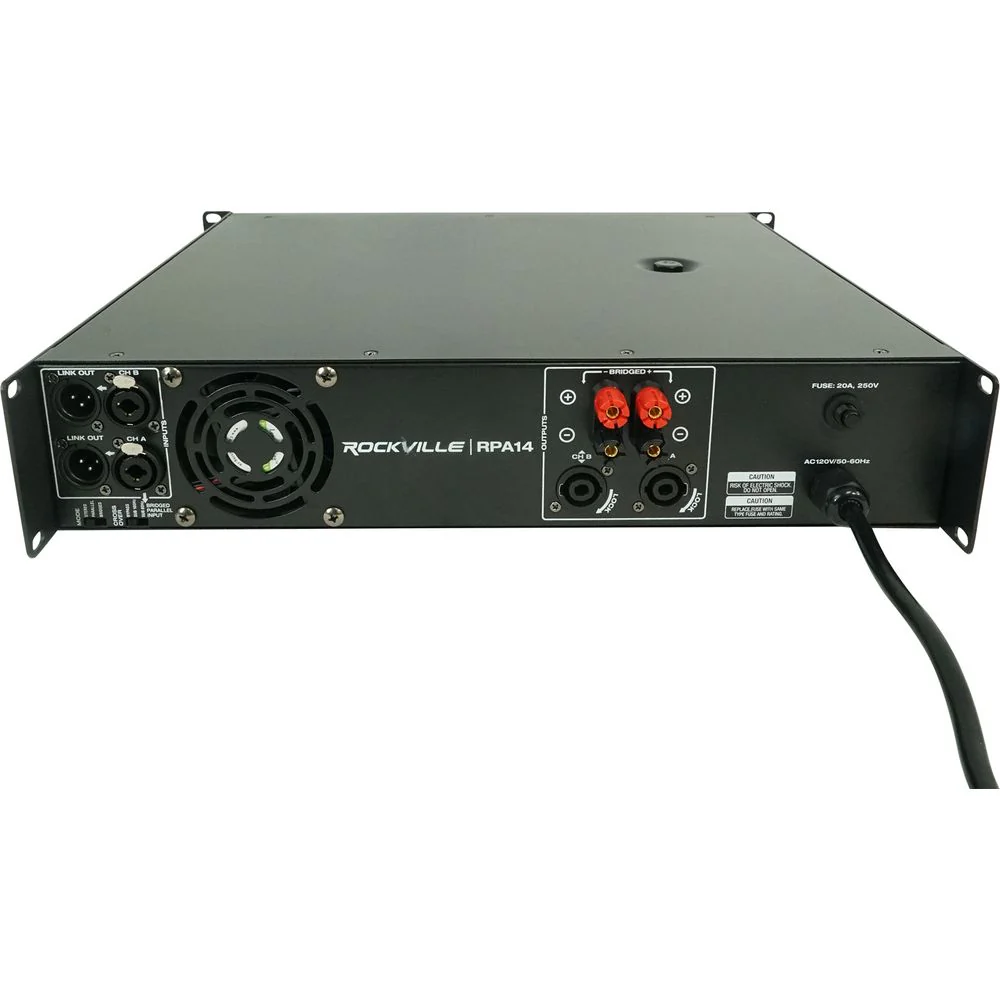

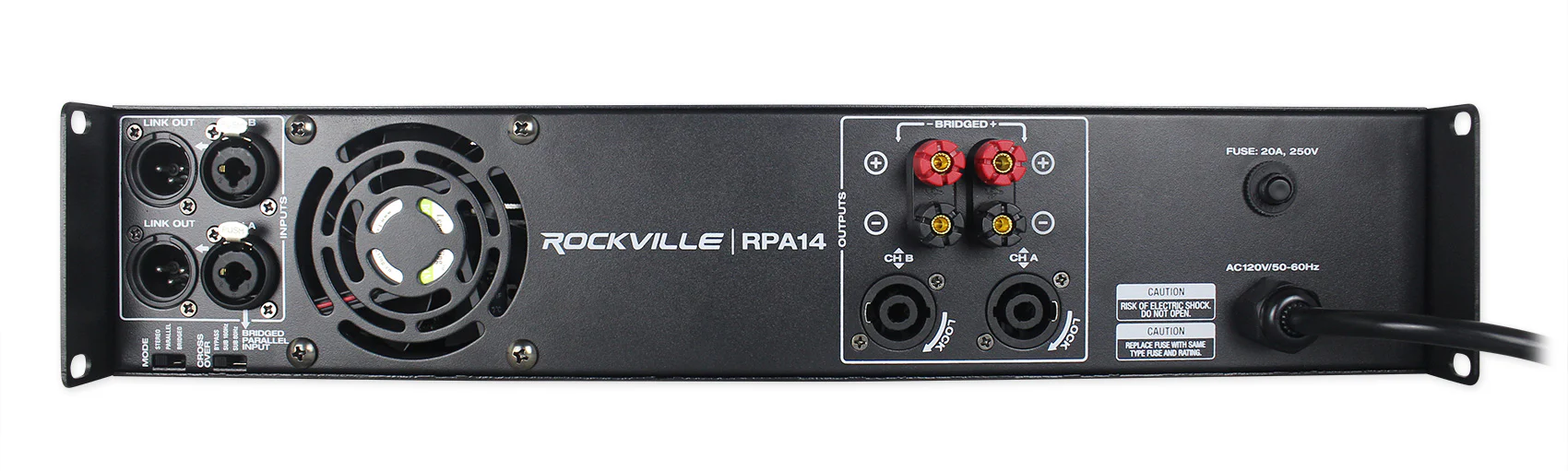

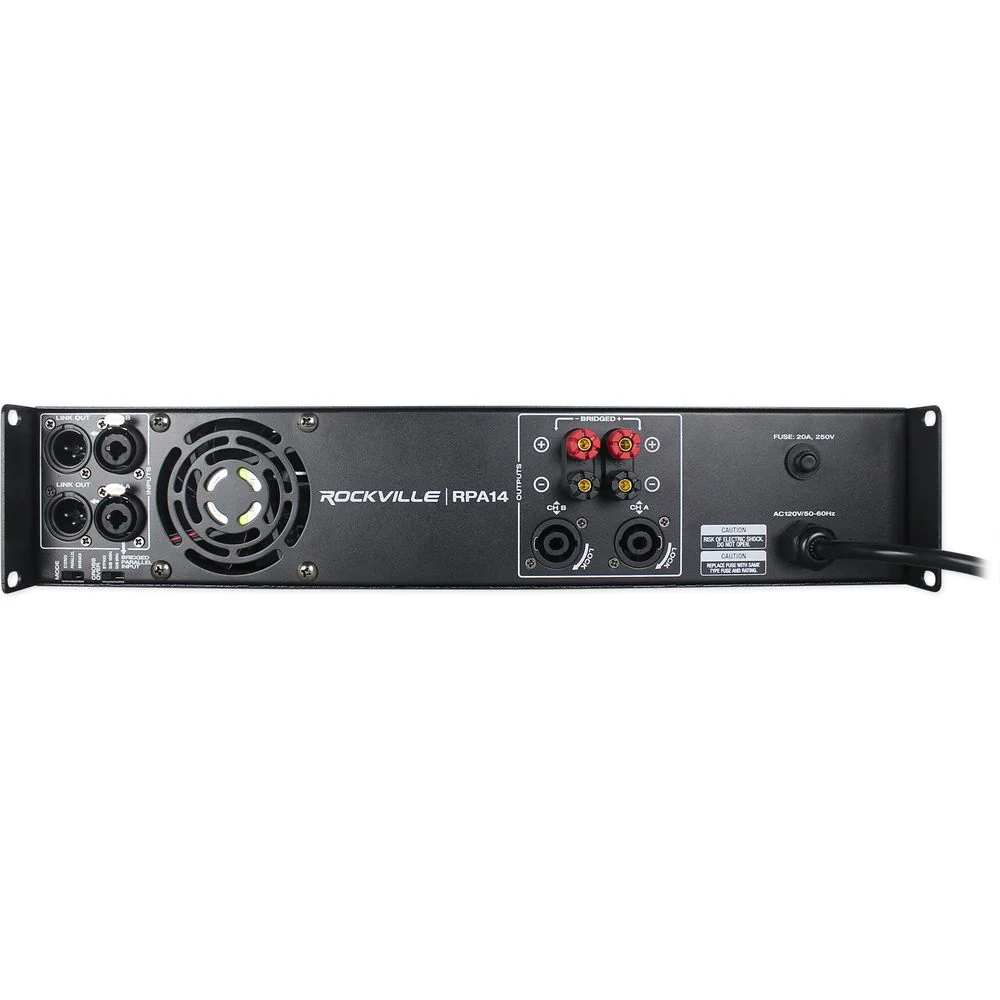

Terminals:

• Input Terminals:
• Combo jack (XLR and ¼”) A & B inputs
• Output Terminals:
• Banana binding post speaker output
• Speakon output
• XLR output to connect another amplifier or powered sub

Features:

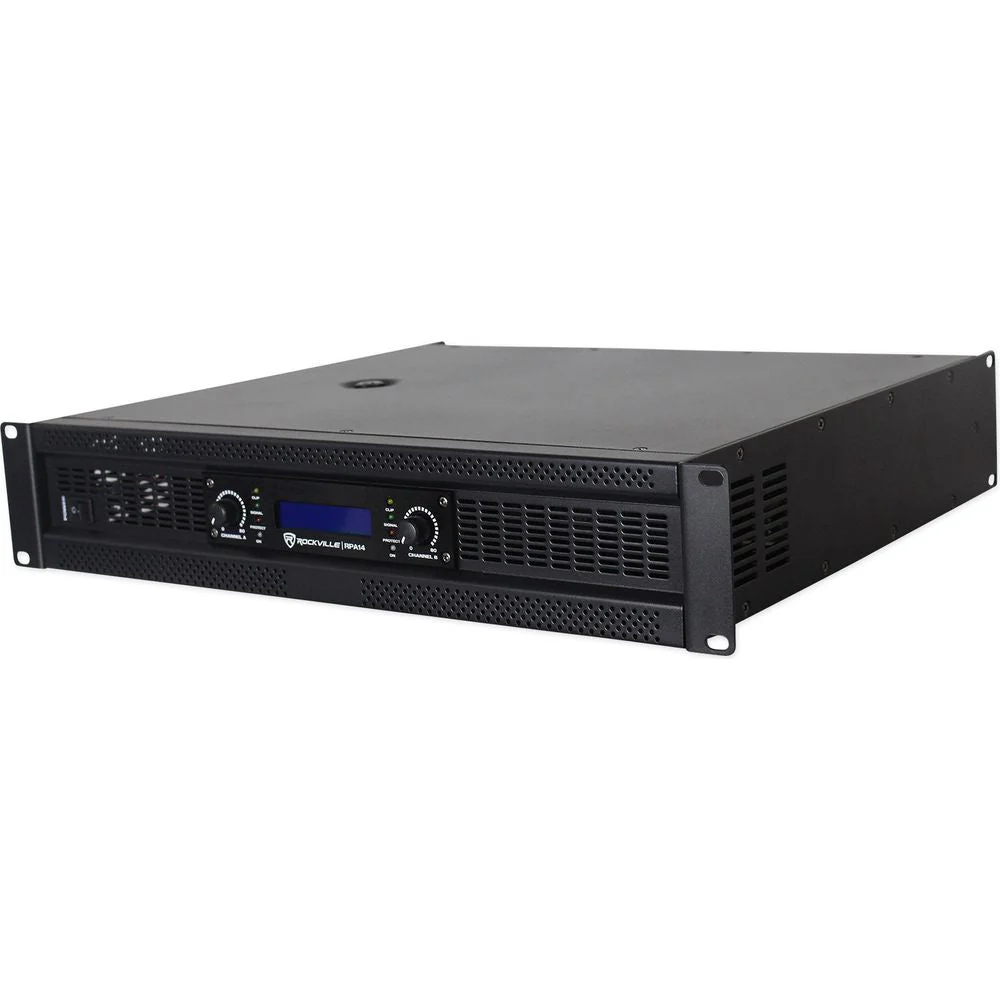

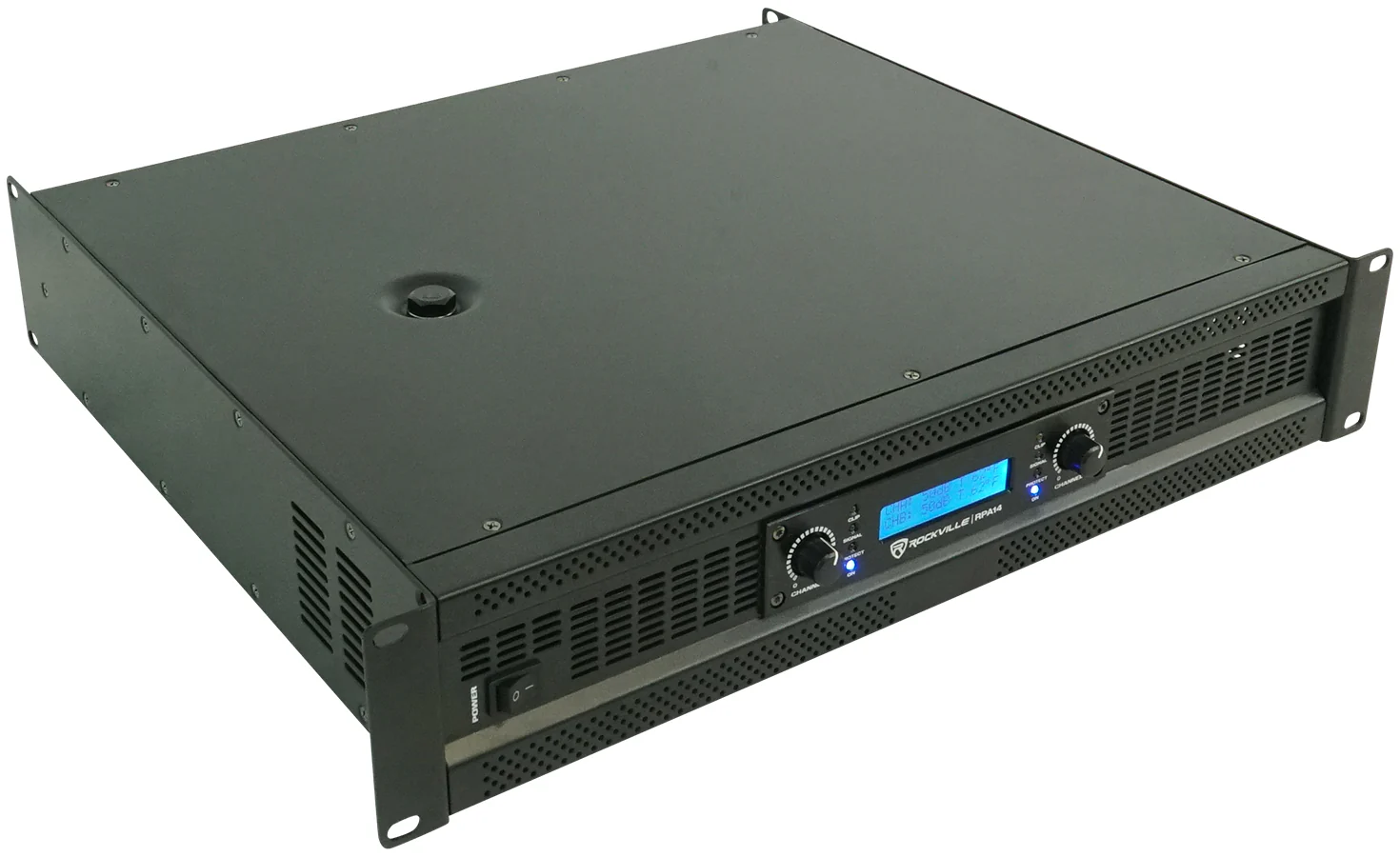

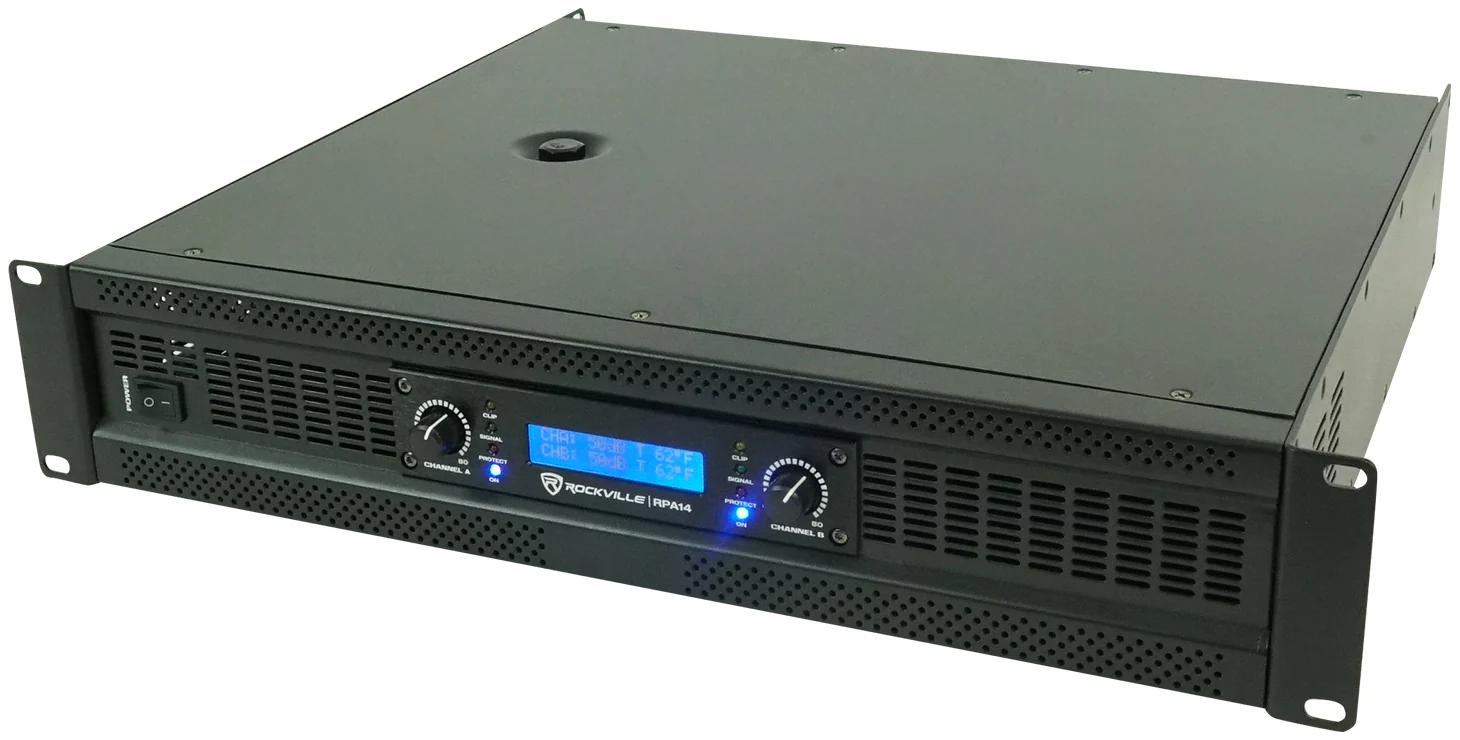

• Rockville RPA14 7000 Watt Peak 2 Channel Professional/DJ Rack Mount Amplifier

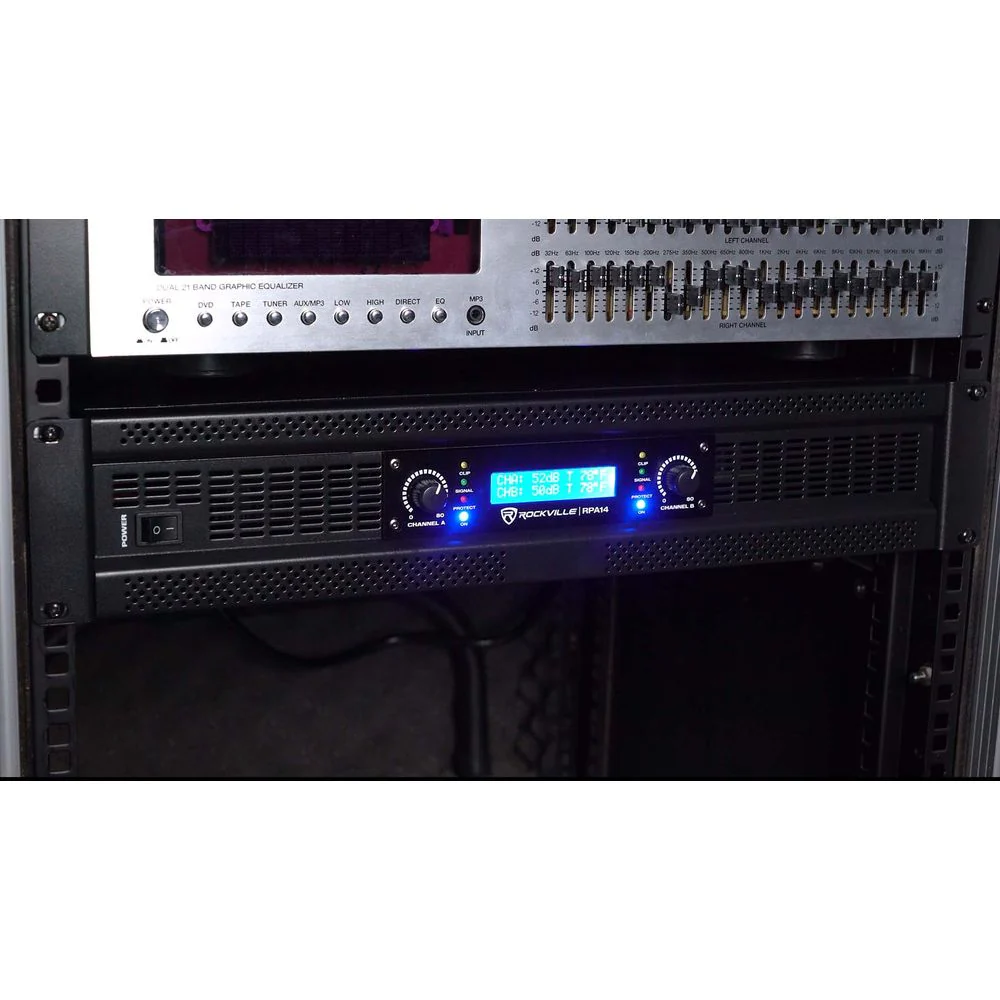

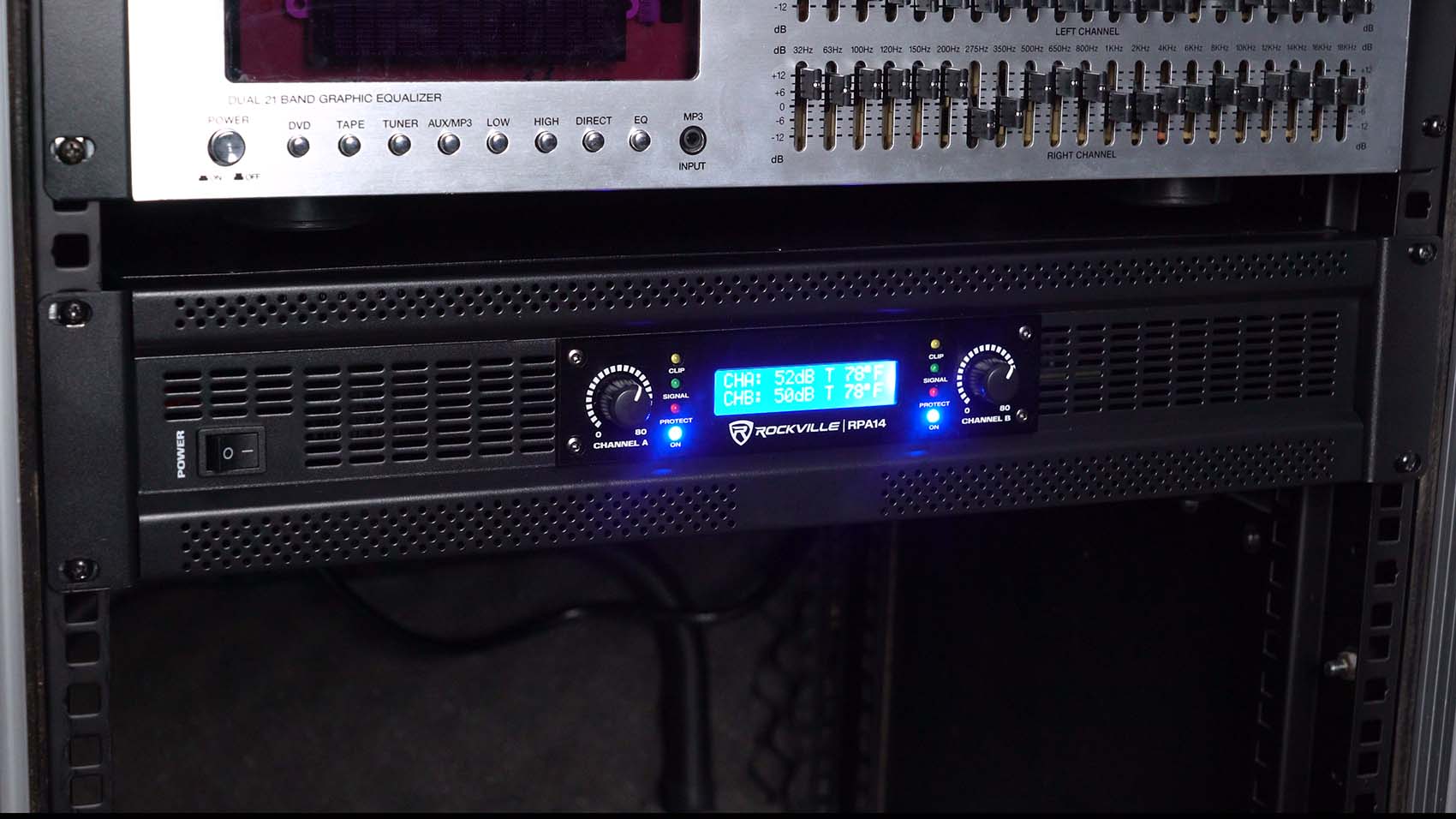

• LCD displays volume in dB per channel and operating temperature
• 2U rack space
• Built in limiter protects your speakers from distortion and clipping
• Bridged mode allows you to combine both channels power into one channel for use with a subwoofer
• Stereo mode is perfect for (2) speakers or (4) speakers in a left and right configuration
• Parallel mode gives you dual mono output signal which is perfect for monitor use when you want all sounds coming out of each speaker instead of a left/right configuration
• Built in crossover switch (bypass, 80 Hz, 160 Hz) allows amp to be used with full range PA speakers, or Subwoofer(s)
• Channel A & B Clipping Led Indicators
• Channel A & B Separate Level Controls
• Power, signal, clipping, and protection LED indicators on front of amp
• Heavy duty rack mount ears
• Built-in variable high velocity quiet cooling fans
• Maximum headroom for 4-ohm and 8-ohm Speakers
• Level controls for precise setting and matching of sensitivity
• Computer controlled IC protection circuitry against speaker short circuit, thermal over load, DC over load
• User serviceable fuse (20A, 250V)
• Frequency Response (bandwidth @ 2Vrms out, @ -3.0dB) 10 Hz – 30 Khz
• THD + Noise @ 1Khz full power: <0.03%
• Input Impedance: 10K Ohm Balanced
• Input signal voltage: 660mV – 1.5V
• Input sensitivity: 0.7v
• Damping factor: ( 100Hz, 10w, 4 ohms): 43.4
• Damping factor: (1Khz @ 8 ohm): >400:1
• Effective damping factor (100Hz, 10w, 4 Ohms) 1.08
• Output impedance at speaker terminals: 0.09214 Ohms
• Frequency Response vs THD+N (worst case, across normal bandwidth 1W) 0.6%
• Signal to Noise Ratio: > 100dB
• IMD 60Hz & 1kHz, 4:1: <0.04%
• SLEW RATE (input filter limited) : 40v/uS
• Power Requirements: 120V / 50-60Hz
• Weight: 28.7 lbs
• Dimensions: 19.09 x 16.93 x 3.35 inch
