MS525W RZR

Video of MS525W:

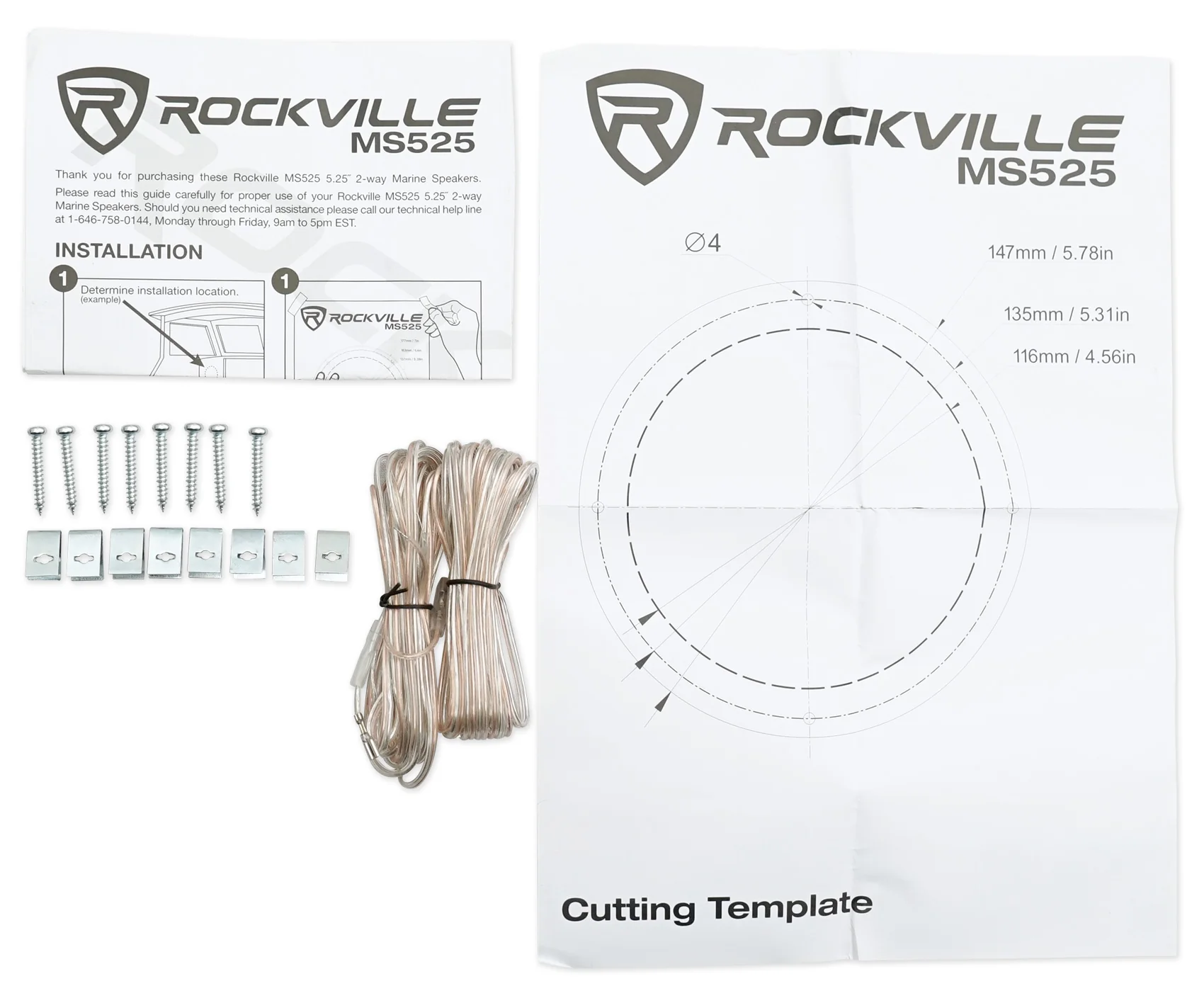

What's In the Box:

• 2 Speakers
• Installation Hardware: (8 Stainless Steel Screws + 8 Stainless Steel  Speed Clips)
• Mounting Template
• Owner's Manual
• Warranty Card

Features:

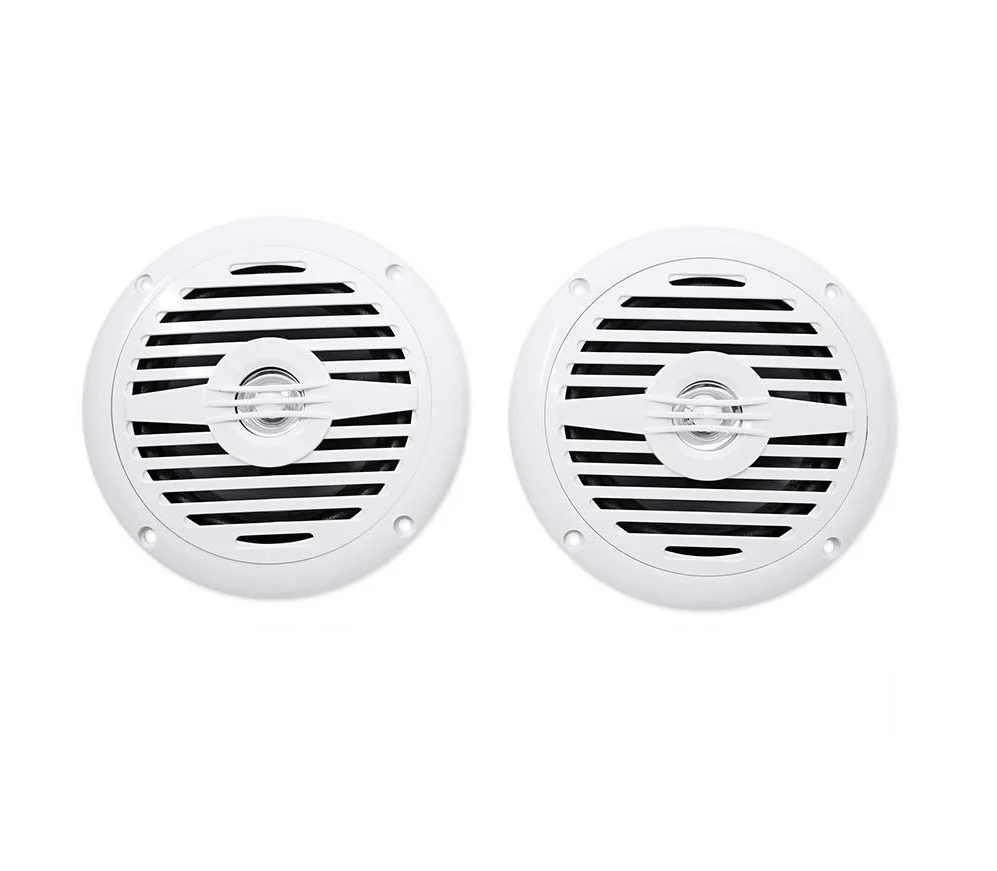

• Pair Rockville MS525W 5.25" 400 Watt Waterproof Marine Boat Speakers 2-Way White

• Peak Power: 400 Watts per pair / 200 Watts each

• RMS Power: 200 Watts per pair / 100 Watts each

• Injection Molded Polypropylene Cone

• Aluminum voice coil with ASV winding

• Cloth surrounds

• Impedance: 4 Ohm

• Frequency Response: 110Hz – 20 Khz

• Sensitivity:87dB @1w/1m

• High quality magnet: 6 Oz Y30 Ferrite magnet

• 1” inch ASV voice coil

• IP56 waterproof

• Fully Marinized Against Salt & Fresh Water Conditions

• Completely Waterproof and rustproof at level IP56

• Anti-UV molded ABS plastic basket & grill

• Pre-installed mounting screws included

• Perfect for marine, outdoor, and car use

• 1” inch Tweeter: (PEI Diaphragm with NdFeB magnet)

• Injection Molded Polypropylene Dust Cap

• SPL: 87dB  ±  2dB (at  1M / 1W)

• Resonant Frequency (F0) 120Hz + or – 20% at 1V

• 3MM plate and 3 MM T-yoke

• Total Diameter: 5.79”

• Cutout Diameter in Inches for Mounting: 5.31”

• Total Height: 2.56”

• Mounting Depth in inches:1.85’’

• Shipping weight: 2.42 Lbs

• Shipping Dimensions:6” x 6” x 5.7”

T/S Parameters:

• Magnet weight in OZ:6 OZ

• Magnet details:F70*F32*10

• Fs:142 Hz

• Re:3.2 ohms

• Qes:2.08

• Qts:1.3

• Qms:3.467

• Vas:1.712L

• Cms:195.49UM/N

• Bl:2.967

• MMS:6.4g

• XMAX:1.5 mm

• SD:78.54 cm²
