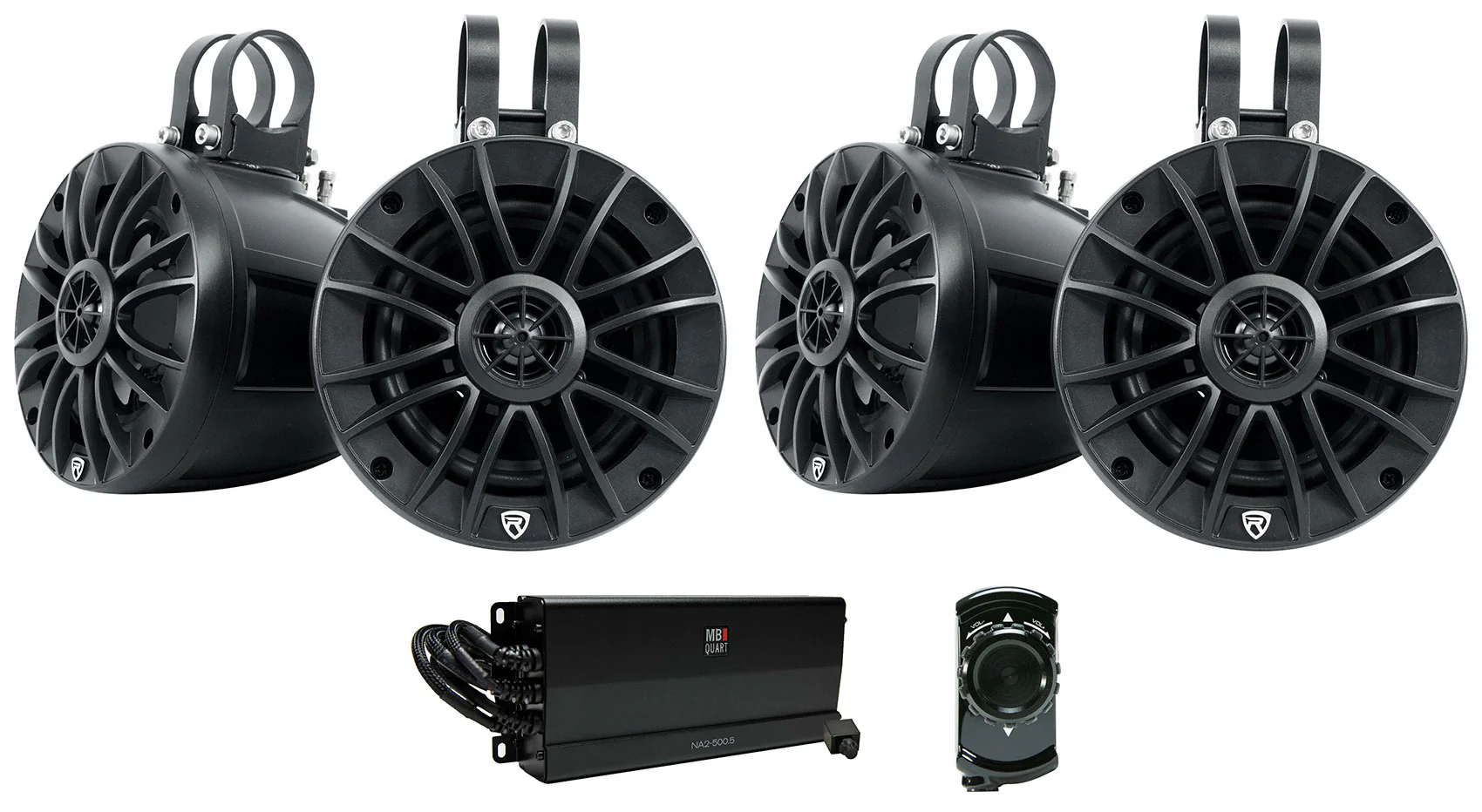

UT525B 2-Pack + NA2-500.5 + N2-WBT Bundle

Package Includes:

• (2) Rockville UT525B UTV/ATV 5.25" Rollbar Wakeboard Marine Speakers/Swivel/IPX6
• (1) MB Quart NA2-500.5 500 Watt 5-Channel Amplifier Class-D Amp For ATV/UTV/RZR
• (1) MB Quart N2-WBT Rocker Switch Bluetooth Controller For Polaris RZR/ATV/UTV/CART

---

UT525B PRODUCT VIDEO:

How To Set Up Your UT525B:

How To Set Up the Brackets On Your UT525B:

What's In The Box:

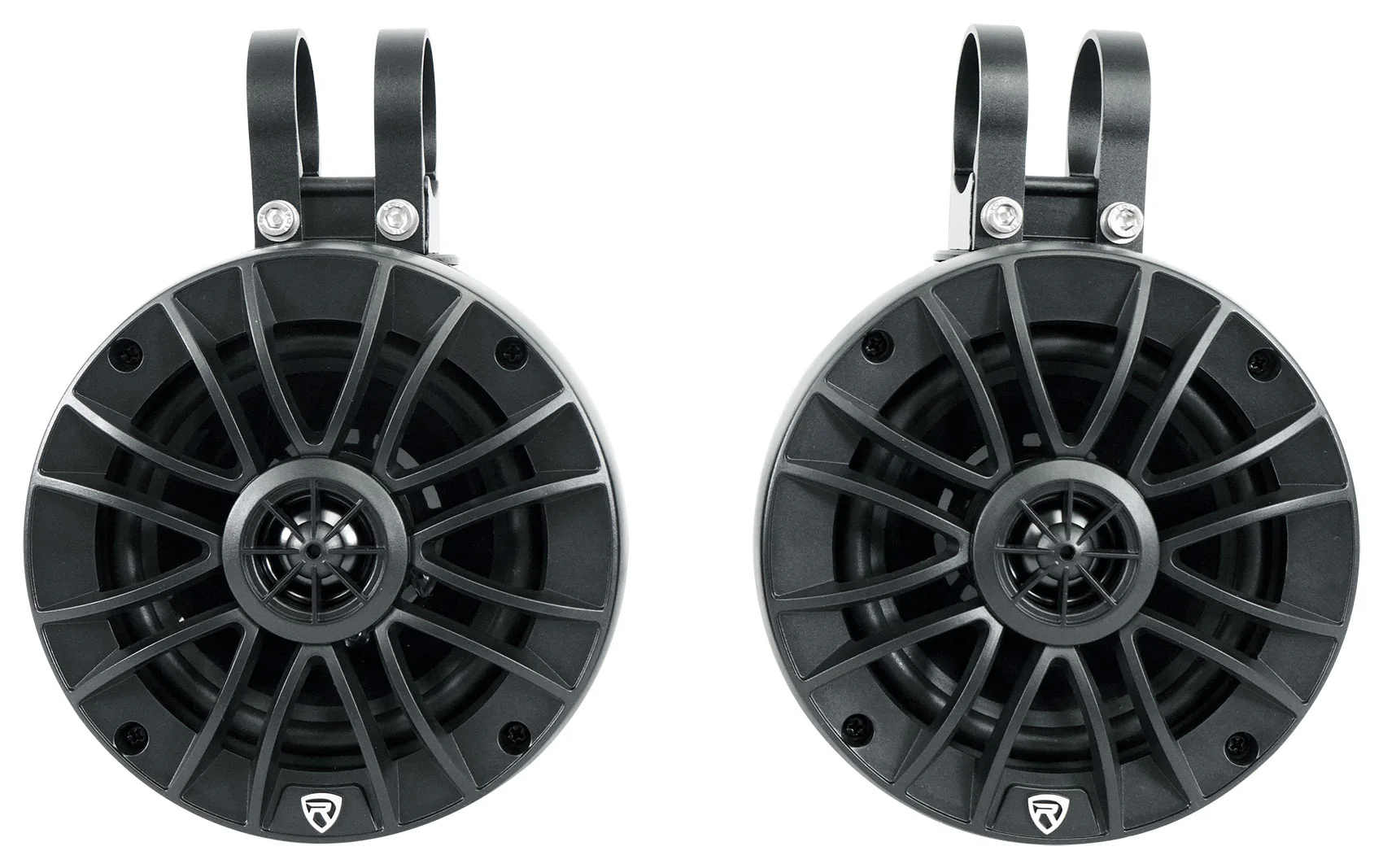

• (2) Swivel mount roll bar / wakeboard speakers
• Swivel Mounting brackets and mounting hardware to fit 1.5'' or 1.75" or 1.875" or 2" bars
• Installation hardware
• Owner's manual
• Warranty card

Features:

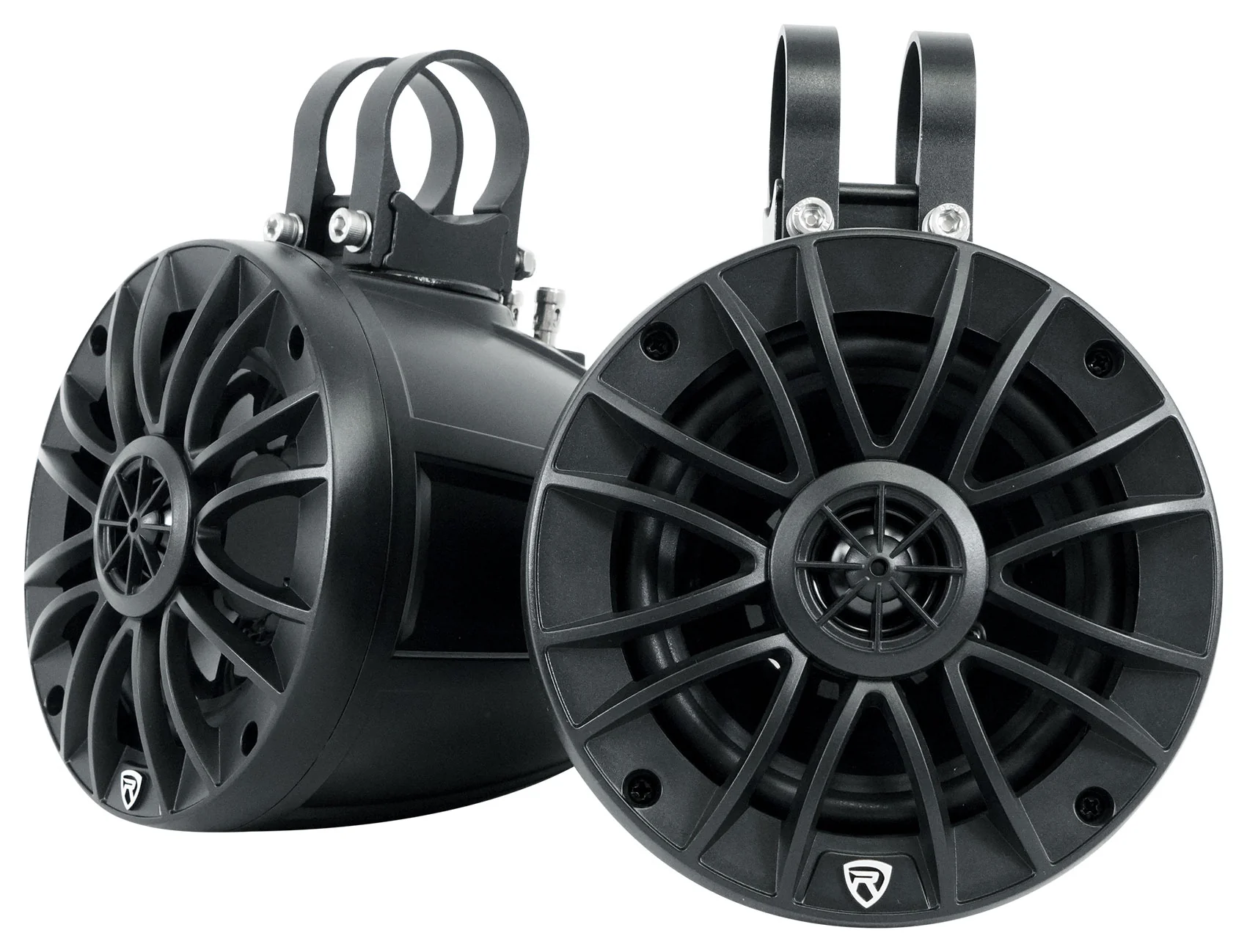

• Rockville UT525B 5.25" Marine UTV/ATV Roll Bar / Wakeboard Tower Speakers
• Peak Power Handling: 280 Watts
• RMS Power Handling: 70 Watts
• True Coax Design With the Tweeter Completely Separated From the Cone
• Larger Cone Surface Area Gives Better Mids and Lows
• Less Mass Attached to the Cone Allows for Higher SPL and Sensitivity
• True coaxial design allows for superior sound quality, better stereo separation, and clearer mids and highs
• Heavy Duty ABS enclosure
• IPX6 Water Resistance Rated
• Marine-grade components are protected from the outdoor elements

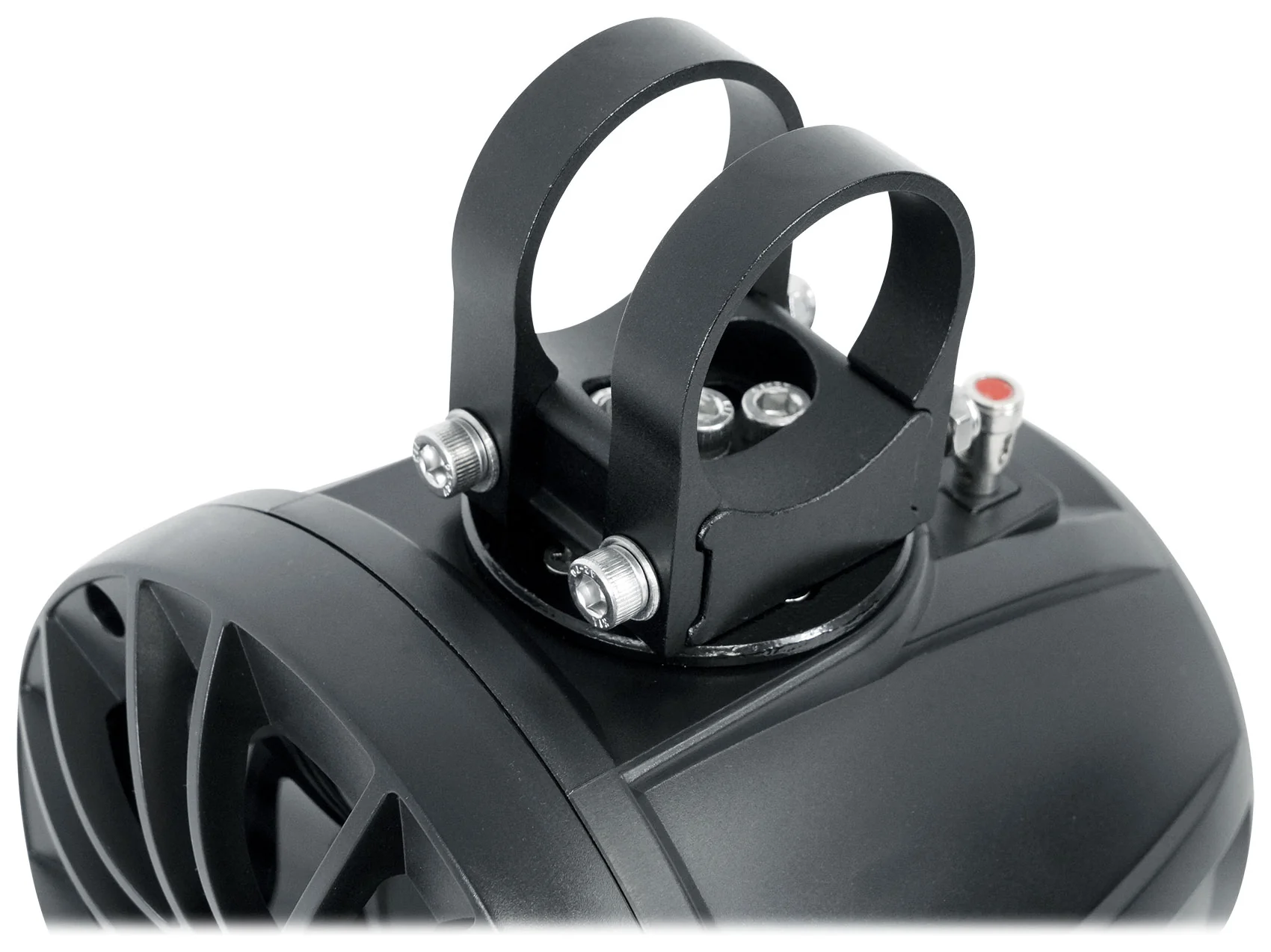

• Adjustable Aluminum Mounting Bracket is Strong and Sturdy
• Bracket Swivels 360 Degrees (Fixed swivel)
• 5.25" Woofers with 11 oz Magnets and Oversized 1" Kapton Voice Coils
• 1" PEI Dome Tweeters with Neo magnets
• Fits wakeboard towers and roll bars ranging from 1.5" to 2" inches
• Shallow enclosure design is perfect for UTV, ATV, and marine applications
• Fully Marinized Against Salt & Fresh Water Conditions
• Completely Resistant to Water, Rust, and UV Rays
• Polypropylene Mica Injected Cone with Butyl Rubber Surround
• Frequency Response: 130Hz - 20KHz
• SPL: 87dB @ 1w/1m
• Impedance: 4 Ohms
• Shockproof Design
• ABS Weather Resistant Grills and Hardware
• RoHS Certified
• Color: Black
• Dimensions (H x W x D): 9" x 6.39" x 6.23"

---

Description:

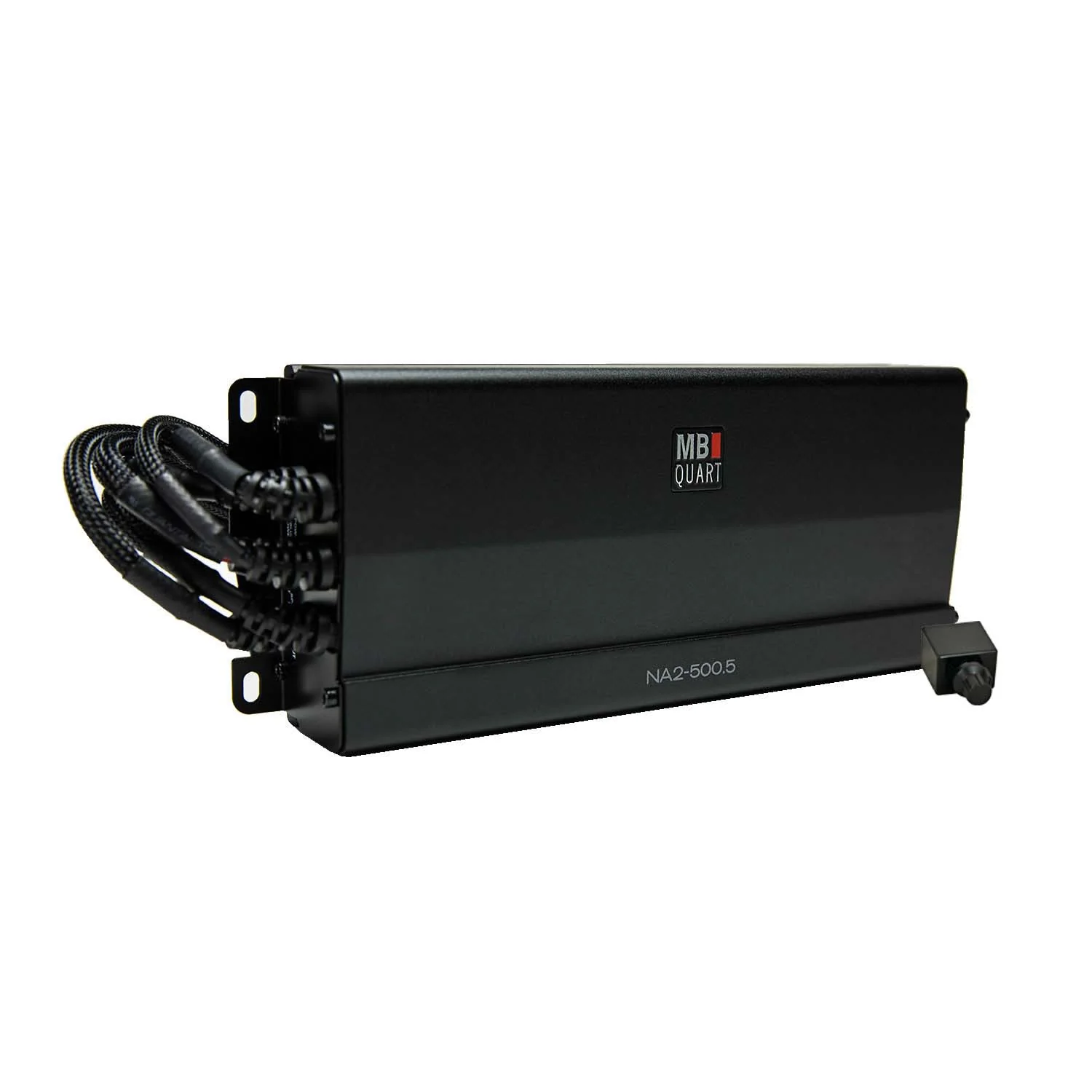

MB Quart compact Five Channel, 500 watt Powersports amplifier with on-board equalization and simple installation with quick release connectors. Base remote included.

Features:

Marine Grade Protection / IPX Rating

Amplifiers are ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture. IPX5

Low Noise Preamplifier Circuit

Q-Stasis Pre Amplifier Stage: The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality.

RCA Inputs

2 Pair, RCA (Front/Rear), 1 Pair RCA (Subwoofer) Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.

Operation Mode

Four channel and with dedicated subwoofer channel: Unique design allows this amplifier to power full range speakers with a dedicated channel for a subwoofer.

Crossover Type

Switched FULL / LPF / HPF: Complete control of amplifier signal, essential when using two or more amplifiers.

Class / Topology

Full Range Class D: Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.

Output Device Technology

PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.

Heat Sink

Aluminum: Quickly dissapates heat to allow the amplifier to run lower impedance for longer duration.

Power Supply

Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.

Output Connections

Quick Disconnect Wires, RCA Connections: Quickly remove amplifier when you are putting machine up for the winter of as a security precaution.

Connection Type

Nickel-plated connections: Nickel plated corrosion resistant connections.

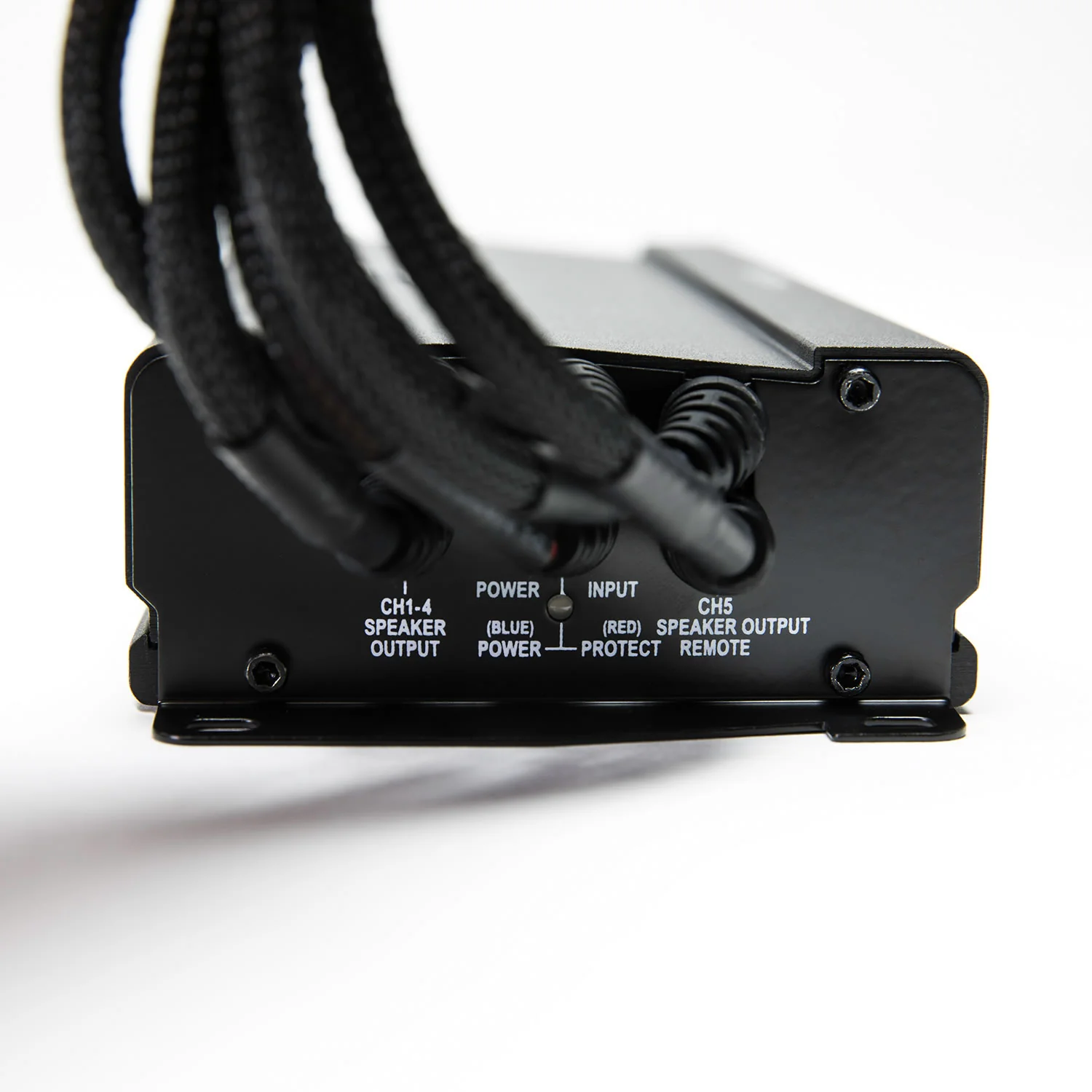

LED System Protection Circuitry Diagnostics

Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel.

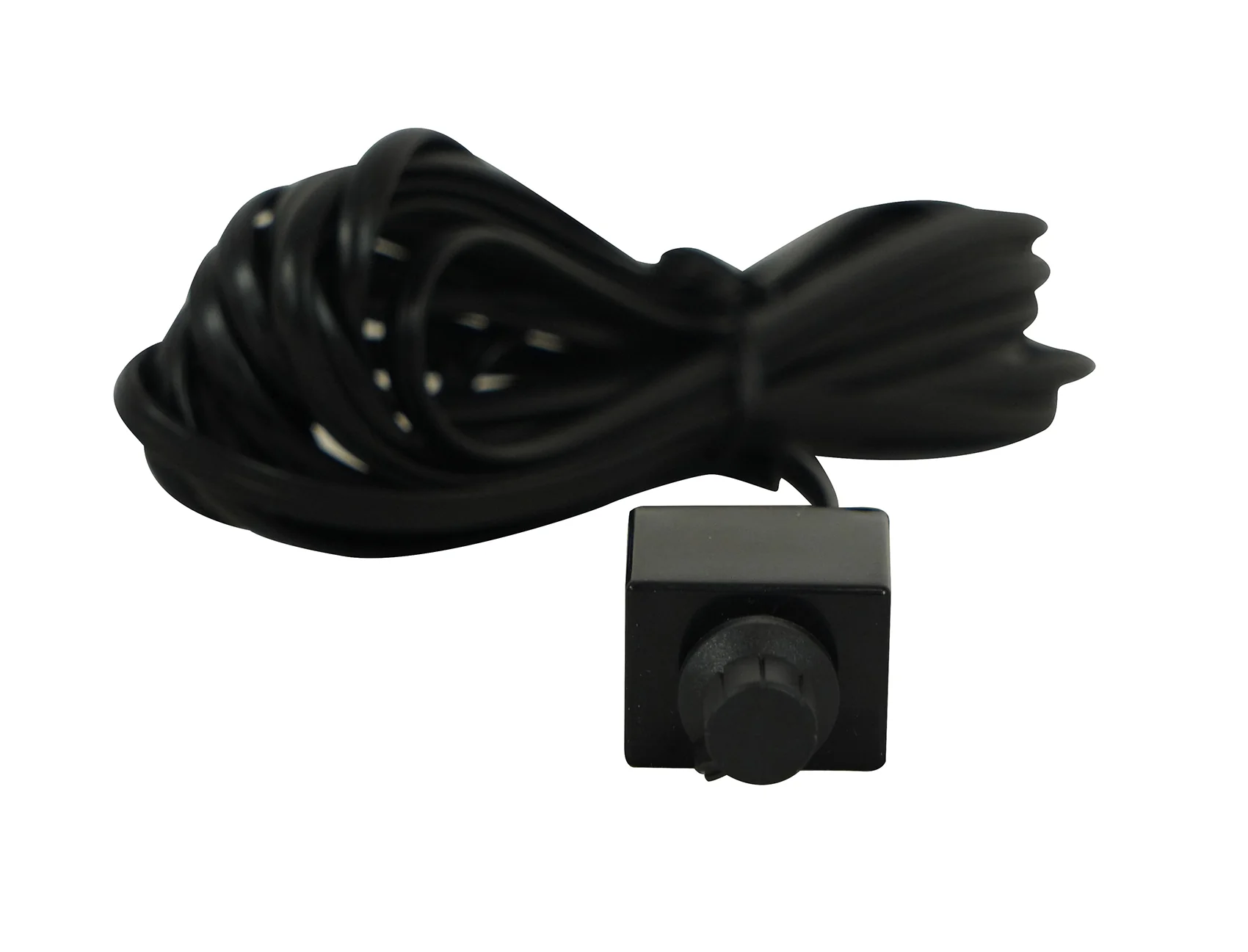

Bass Remote Included

Included: Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.

Specifications:

• Weight: 3.35 lbs
• Type: Amplifier
• Brand: MB Quart
• Series: Nautic
• Category: Marine, Powersports
• Condition: New
• Color: Black
• Warranty: 1 Year
• Amp Class: Full Range Class D
• Amp Total Channels: 5
• Amp Max Power (watts): 500
• Amp Power @ 2 Ohms (ch x watts): 4 x 80 + 1 x 200
• Amp Power @ 4 Ohms (ch x watts): 4 x 40 + 1 x 100
• Amp Variable High Pass Crossover 12dB per Octave: CH1 & CH2: Switched Full/HPF, CH3 & CH4: Switched Full/HPF
• Amp Variable Low Pass Crossover 12dB per Octave: CH5: LPF 50Hz-150Hz
• Amp Bass Boost: 0-12dB @ 45Hz
• Amp Subsonic Filter: 60Hz
• Amp Variable Voltage: 0.2-9V
• Amp Signal to Noise: > 90dB
• Amp Frequency Response: 20Hz-20kHz
• Amp Speaker Level Audio Inputs: RCA
• Amp Power Terminal 12v/GND: Molex 10 GA
• Amp Speaker Terminal Wire Gauge: Molex Plug Connector
• Amp Fusing: 40A x 1

---

Description:

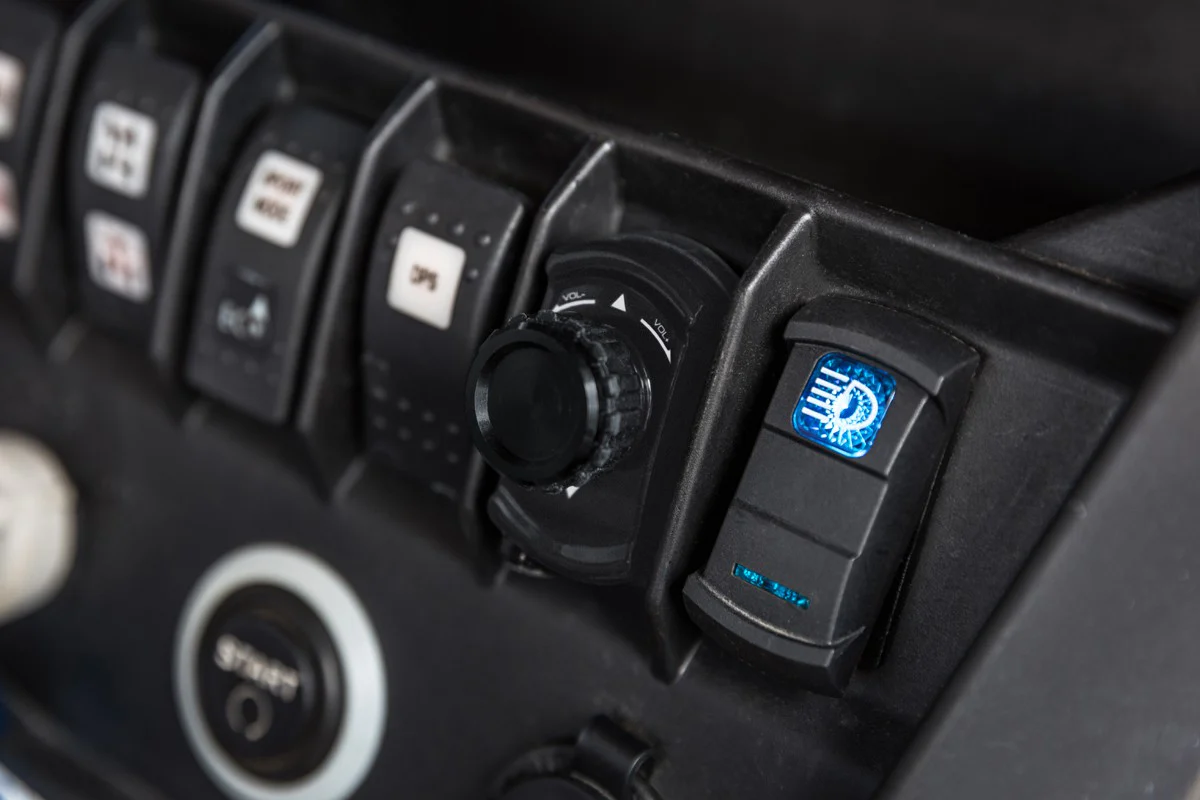

The MB Quart Nautic bluetooth controller is simple source unit solution designed to mount in a standard switch or accesory location. Features include: Back lighting and RCA outputs (Left & Right).

Features:

• MB Quart N2-WBT Wired Bluetooth Preamp Controller, Boat Polaris/ATV/UTV/RZR/CART
• Marine Grade Protection: Yes - Meets or excceds the American Boat and Yacht Council (ABYC) marine electronics standards and the American Society for Testing and Materials (ASTM)
• Source Type: Bluetooth - Allows to music via Bluetooth enabled devices
• Input Types: Bluetooth and 3.5mm jack - Bluetooth enabled devices and 3.5mm input from headphone output of mobile music device or phone
• Control Buttons: Fingertip Joystick - Play/Pause, Tracks Forward/Back, Volume Up/Down and Power On/Off are all protected from the elements with the the unique Fingertip Joystick
• Bluetooth Connect: Yes - Bluetooth Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process.
• Additional Inputs: 1 pair RCA (Left & Right)
• Bluetooth Range: 32' - 10 Meter
• Frequency Response (Aux In): 20Hz - 20kHZ
• Pre-amp Outputs: 1pr Left/Right
• Pre-amp Voltage: 2V
• Display Type: Backlight
• Display Backlit: Dial is backlit
• Dimensions Mounting Hole: Swich Hole 0.83" x 1.41" (2.1cm x 3.58cm)
• Dimensions Mounting Depth: 2.5" (6.35cm)
• Dimensions Mounting Bezel: 4.15" (10.5 cm)
• Product Weight: 1.0 lbs (0.45 kg)
• Product Dimensions: 3.5" (8.89cm)
